WB171-W 12V–48V Weatherproof LED Lighting Control Box, WiFi/Bluetooth | GOULY
| Item | Specification |
|---|---|
| Part No. | WB171-W-12V-48V-PRO-BOM |
| Product Type | Weatherproof LED lighting control box |
| Supported Voltage | 12V / 24V / 36V / 48V |
| Output Channels | 1-channel or 4-channel options |
| Output Current | Configuration-dependent; each channel rated separately |
| Power Supply | Mean Well 350W / 450W / 650W options |
| Control Method | WiFi, Bluetooth, app, cloud, music, voice, and SPI |
| Scene Functions | Up to 140 scene modes shown |
| IC Compatibility | Supports 13 IC types shown |
| Color Capability | Up to 16 million RGB colors |
| Protection | Independent circuit current protection |
| Cooling | Dual-fan temperature-controlled heat dissipation |
| Signal Extension | Mini signal amplifier options |
| Enclosure Material | PC + glass fiber |
| Fire Protection | Flame-retardant V-2 shown |
| Enclosure | Weatherproof control box |
| Input Plug | American plug shown |
| Logo | Custom logo support |
| Warranty | Three years shown |

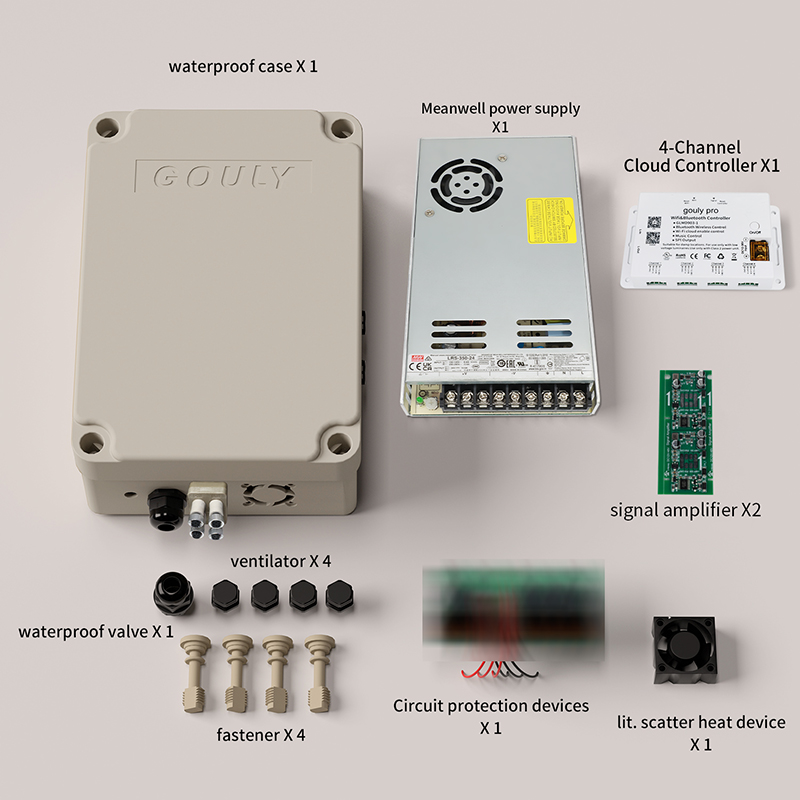

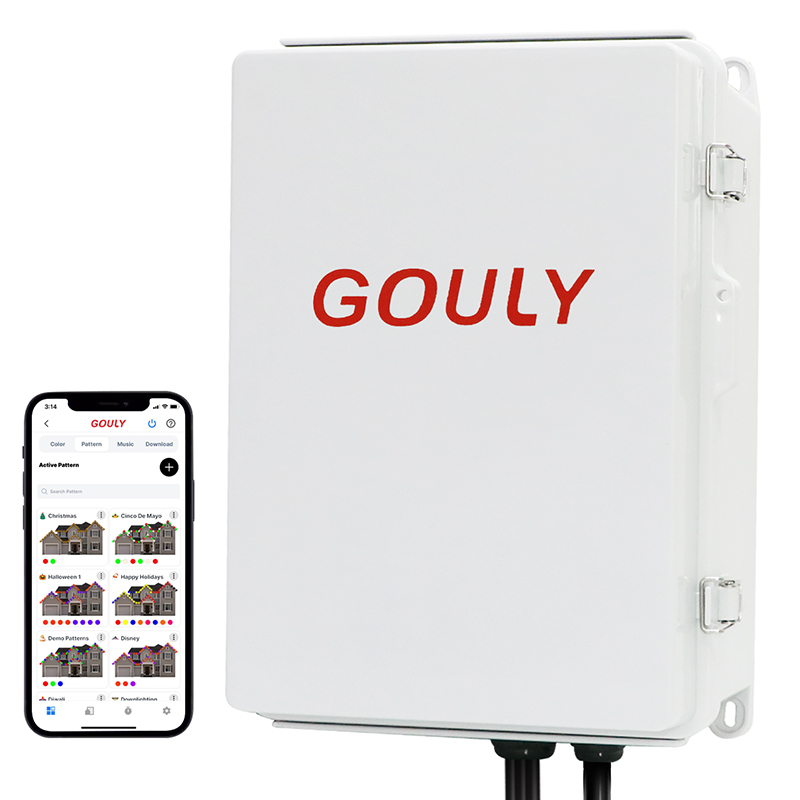

GOULY WB171-W is a weatherproof control box for large-scale outdoor LED strip, pixel light, and landscape lighting installations. It integrates power distribution, smart lighting control, circuit protection, cooling, and signal management in a sealed enclosure for residential, commercial, architectural, and holiday lighting projects.
The system supports 12V, 24V, 36V, and 48V configurations with optional Mean Well 350W, 450W, or 650W power supplies. WiFi and Bluetooth control options provide app, cloud, music, voice, SPI, color, pattern, timer, and holiday-scene functions. Multi-channel protection, dual-fan heat dissipation, and optional signal amplifiers help support long-distance and multi-zone installations.
- Weatherproof LED lighting control box for outdoor projects
- Supports 12V, 24V, 36V, and 48V configurations
- Optional Mean Well 350W, 450W, or 650W power supply
- WiFi and Bluetooth app control

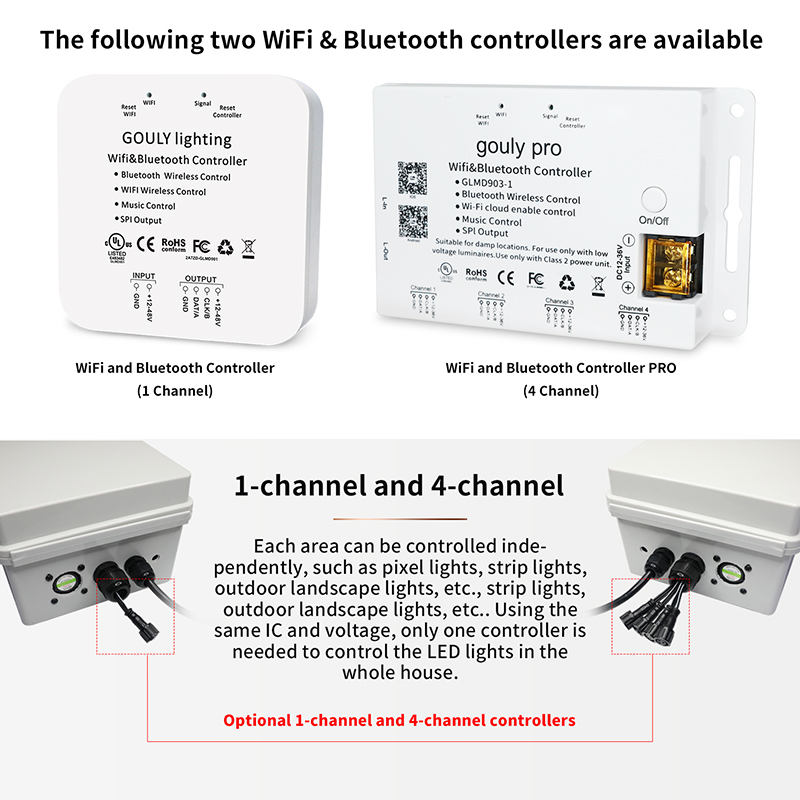

- Optional 1-channel or 4-channel controller configuration
- Cloud, music, voice, SPI, color, and pattern control support
- Supports up to 13 IC types and 140 scene modes shown
- RGB control with up to 16 million colors
- Independent current protection for each output circuit

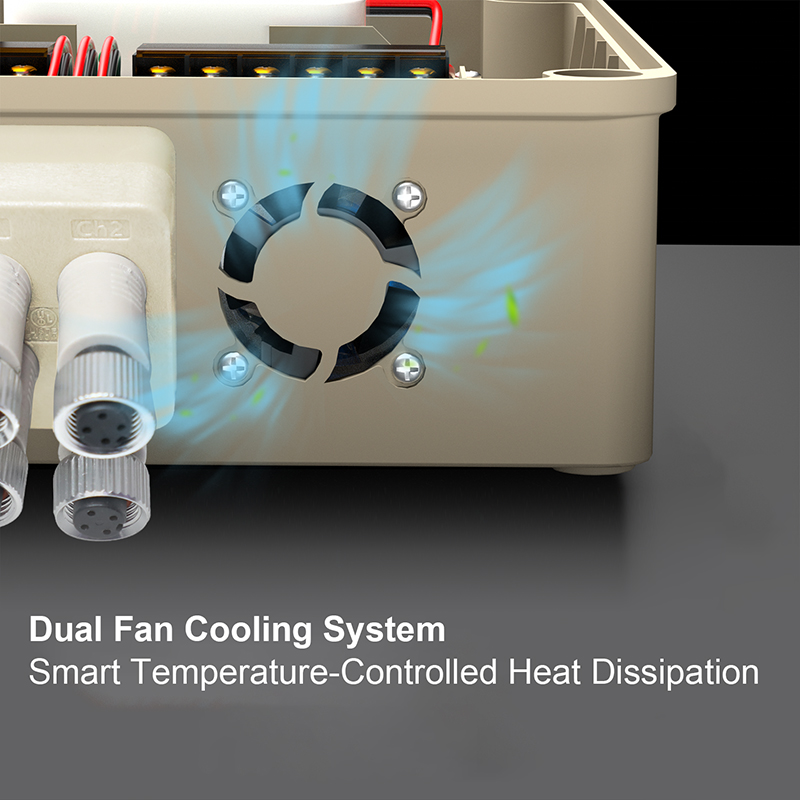

- Dual-fan temperature-controlled heat dissipation
- Optional mini signal amplifiers for long cable runs
- Fire-retardant PC and glass-fiber enclosure
- Custom logo and enclosure configuration available
- Three-year warranty shown in product materials
Product Specifications
| Item | Specification |
|---|---|
| Part No. | WB171-W-12V-48V-PRO-BOM |
| Product Type | Weatherproof LED lighting control box |
| Supported Voltage | 12V / 24V / 36V / 48V |
| Output Channels | 1-channel or 4-channel options |
| Output Current | Configuration-dependent; each channel rated separately |
| Power Supply | Mean Well 350W / 450W / 650W options |
| Control Method | WiFi, Bluetooth, app, cloud, music, voice, and SPI |
| Scene Functions | Up to 140 scene modes shown |
| IC Compatibility | Supports 13 IC types shown |
| Color Capability | Up to 16 million RGB colors |
| Protection | Independent circuit current protection |
| Cooling | Dual-fan temperature-controlled heat dissipation |
| Signal Extension | Mini signal amplifier options |
| Enclosure Material | PC + glass fiber |
| Fire Protection | Flame-retardant V-2 shown |
| Enclosure | Weatherproof control box |
| Input Plug | American plug shown |
| Logo | Custom logo support |
| Warranty | Three years shown |
