SP901E DC5-24V 5V TTL Signal Amplifier, 4-Output LED Pixel Signal Booster | GOULY
| Item | Specification |
|---|---|
| Part No. | SP901E |
| Voltage | DC5-24V |
| Power | Consumption: <1W |

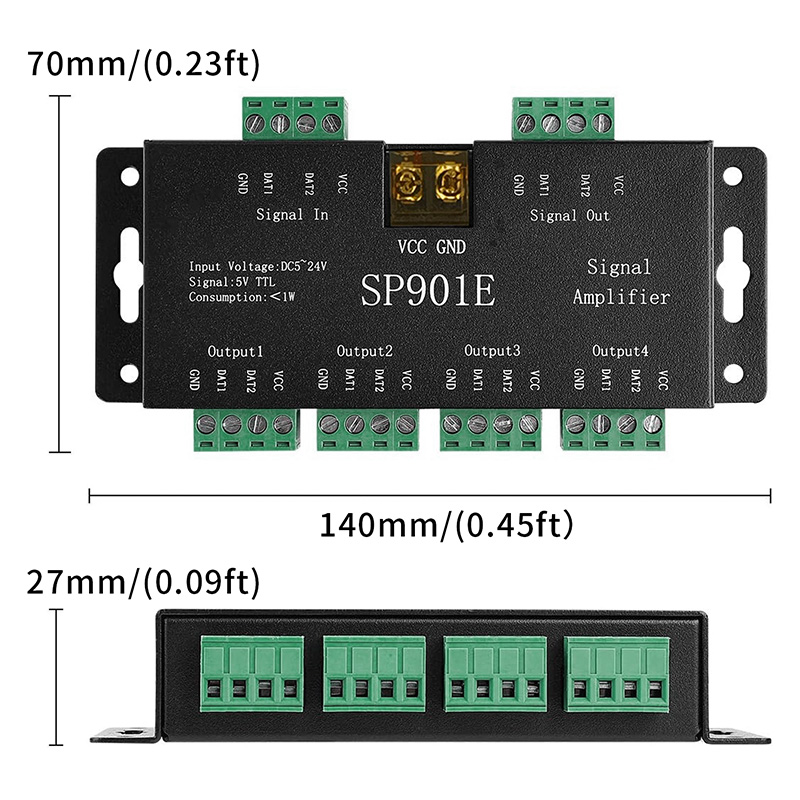

| Size | 140 x 70 x 27 mm |
| Material / Shell Color | Black housing |
| Color | Black |
| Control Method | Signal amplification / wired connection |
| Signal Type | 5V TTL |
| Signal Input | GND, DAT1, DAT2, VCC |
| Signal Output | GND, DAT1, DAT2, VCC |
| Output Channels | Output1, Output2, Output3, Output4 |
| Power Input | VCC / GND, DC input |
| Application Distance | Recommended when controller-to-fixture distance exceeds 20m |
| Voltage Limitation | Fixture working voltage must not exceed 24V |

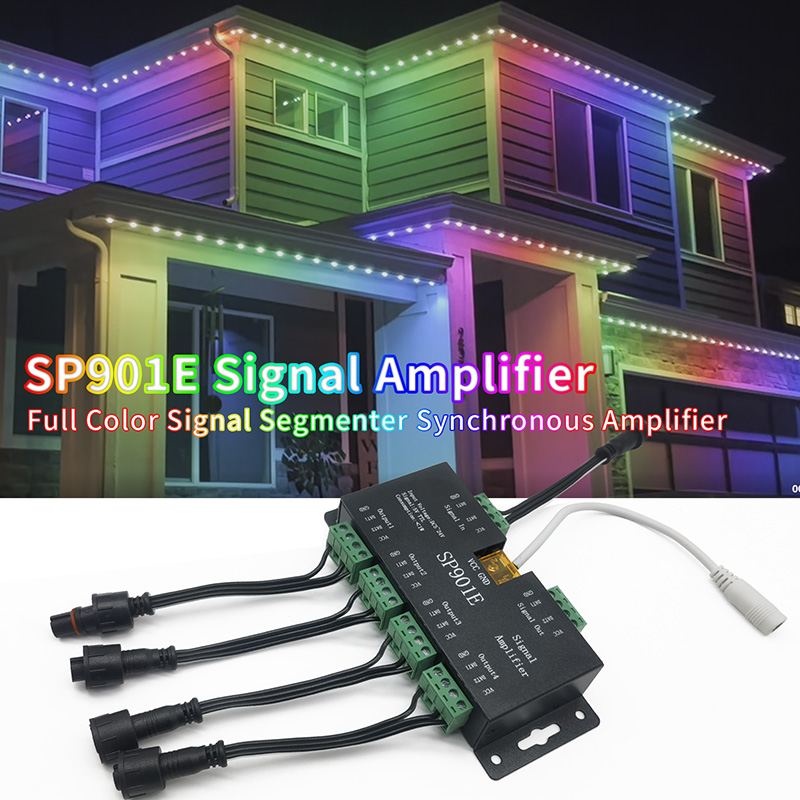

The GOULY SP901E signal amplifier is designed for full color LED pixel lighting projects that need longer signal transmission and more stable synchronous output. It supports DC5-24V working voltage and 5V TTL signal input, helping extend the effective signal distance between the controller and LED fixtures.

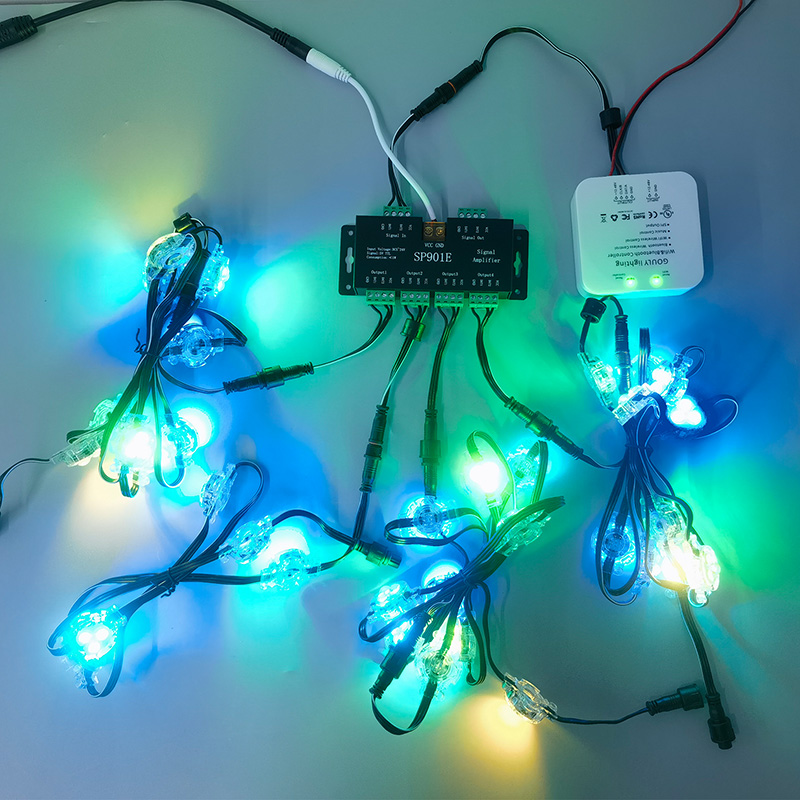

With signal input, signal output, and four output ports, the SP901E can be used in medium and large outdoor lighting projects such as roofline lighting, facade lighting, landscape installations, commercial buildings, and decorative pixel light systems. It is especially useful when the distance between the controller and fixtures exceeds 20m or when long extension cables may cause flickering.

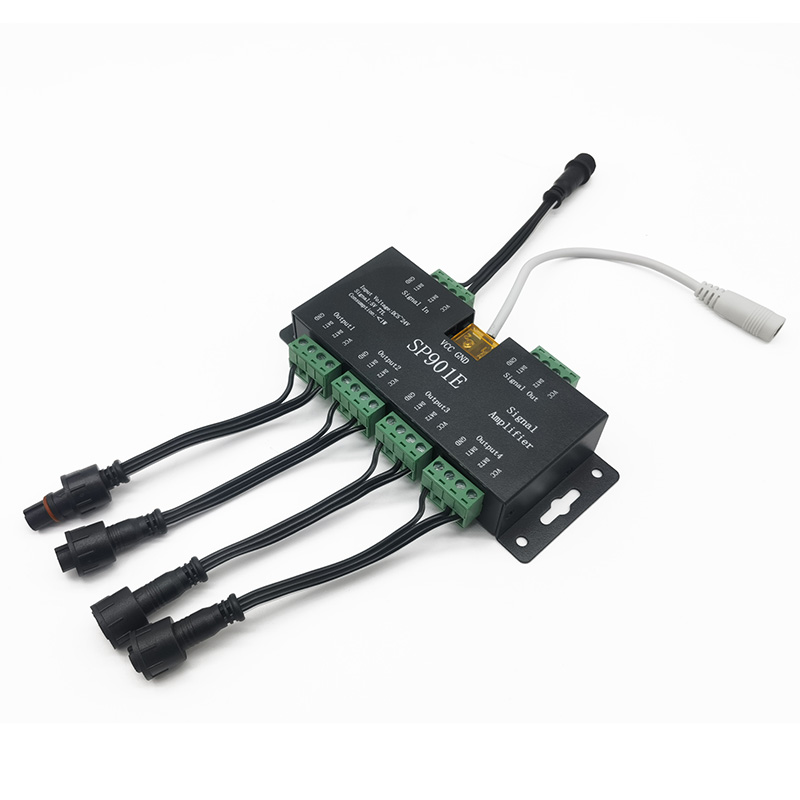

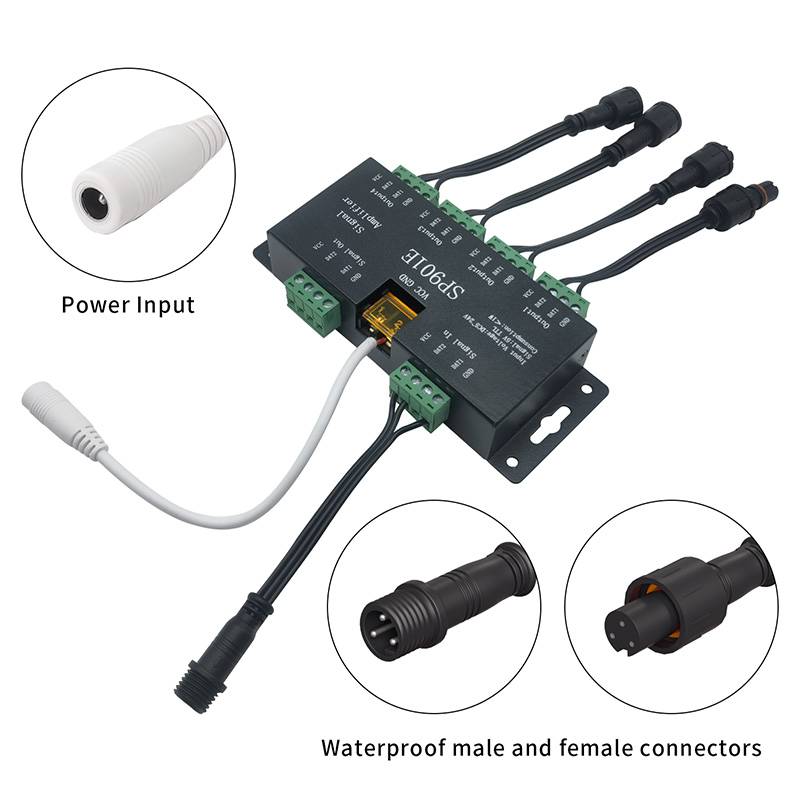

The unit includes screw terminal connections, VCC/GND power input, and clearly marked GND, DAT1, DAT2, and VCC wiring positions for easier project installation. Waterproof male and female connectors are shown for compatible lighting cable connections.
- SP901E signal amplifier for LED pixel lighting systems
- DC5-24V working voltage range
- 5V TTL signal input
- Low power consumption: less than 1W
- Four output channels for segmented signal distribution
- Supports signal extension for medium and large projects
- Helps reduce signal loss and voltage drop in long-distance wiring
- Clearly marked GND, DAT1, DAT2, and VCC terminals
- Screw terminal design for secure wiring
- Suitable for roofline, facade, landscape, and commercial lighting projects
Product Specifications
| Item | Specification |
|---|---|
| Part No. | SP901E |
| Voltage | DC5-24V |
| Power | Consumption: <1W |
| Size | 140 x 70 x 27 mm |
| Material / Shell Color | Black housing |
| Color | Black |
| Control Method | Signal amplification / wired connection |
| Signal Type | 5V TTL |
| Signal Input | GND, DAT1, DAT2, VCC |
| Signal Output | GND, DAT1, DAT2, VCC |
| Output Channels | Output1, Output2, Output3, Output4 |
| Power Input | VCC / GND, DC input |
| Application Distance | Recommended when controller-to-fixture distance exceeds 20m |
| Voltage Limitation | Fixture working voltage must not exceed 24V |
