UDPL-22W-02 24V RGBW Recessed Pool Light, IP68, 22W | GOULY
| Item | Specification |
|---|---|
| Part No. | UDPL-22W-02 |
| Product Type | RGBW recessed underwater pool light |
| Voltage | DC24V |
| Power | 22W |
| Beam Angle | 120° |
| LED Type | SMD5054 RGBW |
| LED Quantity | 216 pcs |
| IC Model | UCS7604 |
| IC Quantity | 12 pcs |
| Luminous Flux | 897.1 lm |
| Installation | Recessed / flush-mounted |
| Size | Dia. 230 × H31 mm |
| Housing Material | Stainless steel |
| Housing Finish | Natural stainless steel |
| Cover Material | Transparent PC |
| Color | RGBW |
| Control Method | WiFi smart app control |
| Connector | M12 waterproof connector shown |
| IP Rating | IP68 |
| Lifespan | 50,000 hours shown |
| Working Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 60°C |

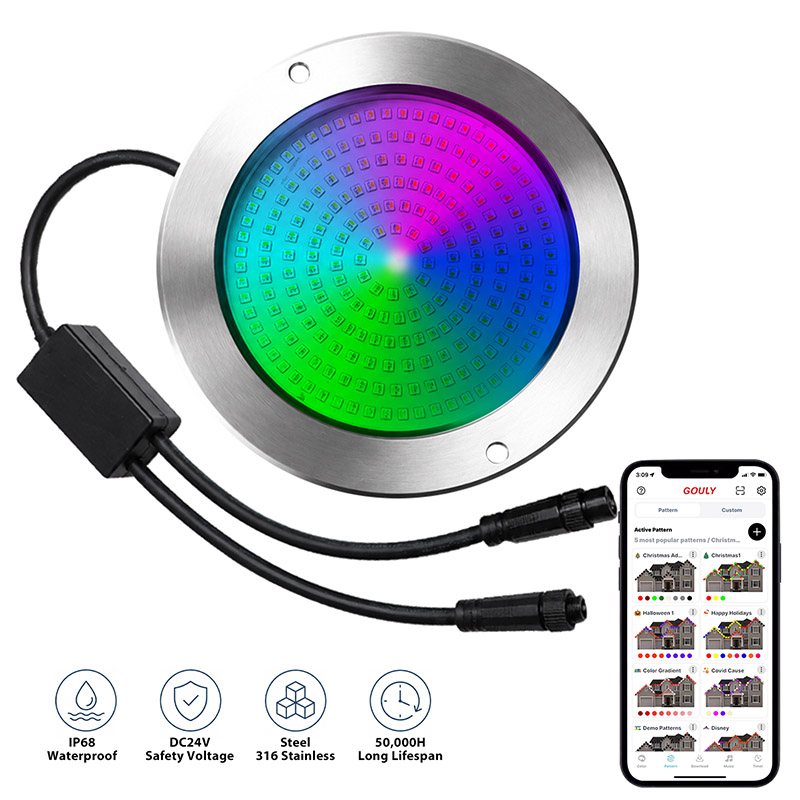

GOULY UDPL-22W-02 is a 24V RGBW recessed pool light designed for swimming pools, spas, resort pools, villa pools, water features, and commercial aquatic environments. Its stainless steel housing and transparent PC cover provide a durable, clean appearance for flush-mounted underwater installations.

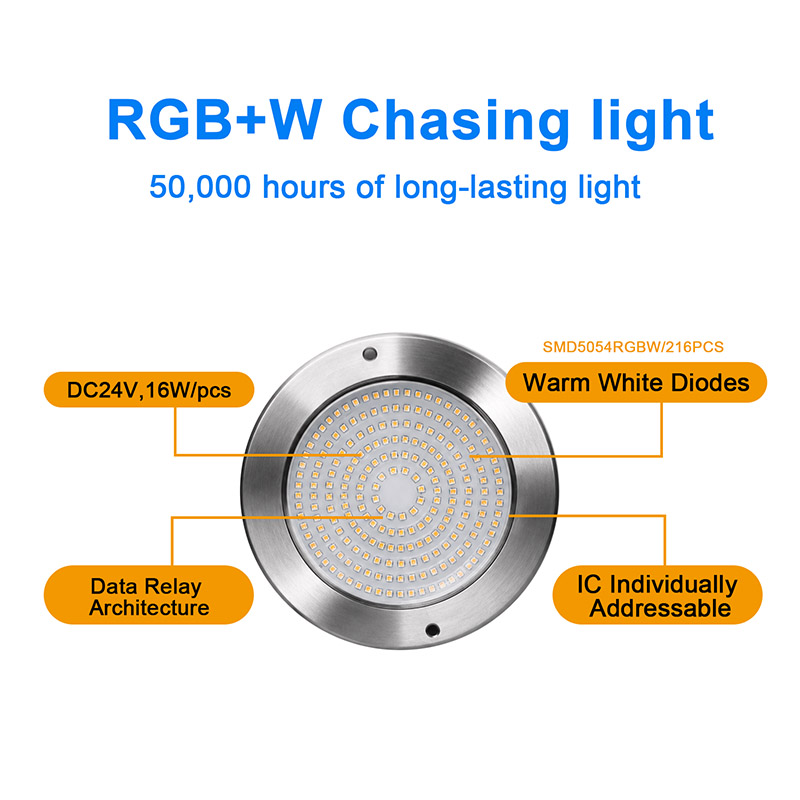

The 22W light uses 216 SMD5054 RGBW LEDs and 12 UCS7604 ICs for individually addressable color effects. With a 120° beam angle and 897.1 lm output, it delivers broad and even illumination. WiFi app control supports color selection, brightness adjustment, patterns, and custom lighting scenes.
- 24V DC low-voltage pool lighting
- 22W RGBW recessed underwater light
- 216 SMD5054 RGBW LEDs
- 12 UCS7604 individually addressable ICs

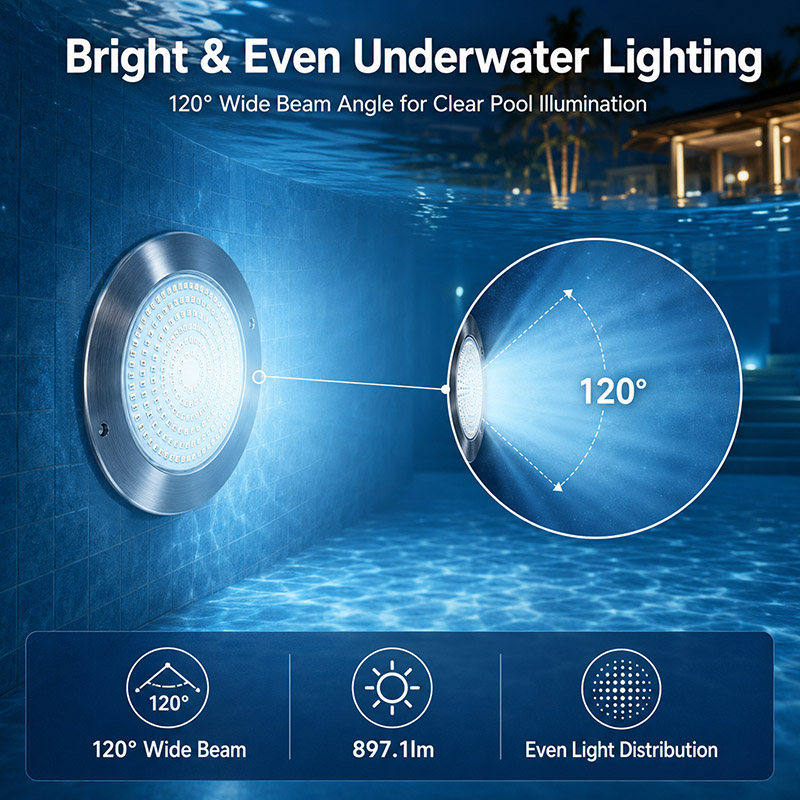

- 120° wide beam angle
- 897.1 lm luminous flux

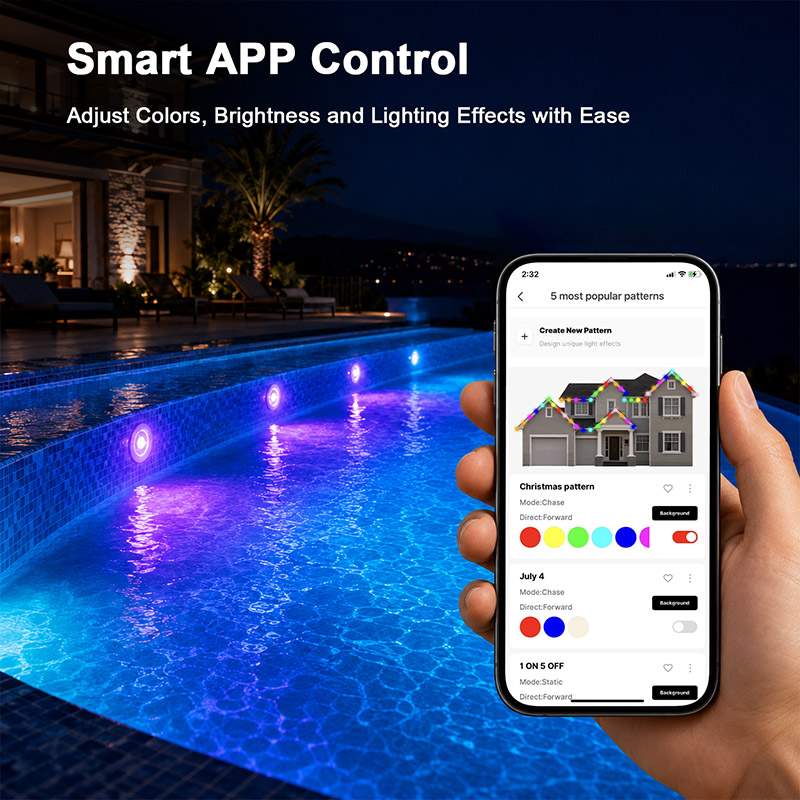

- WiFi app control for colors, brightness, and patterns

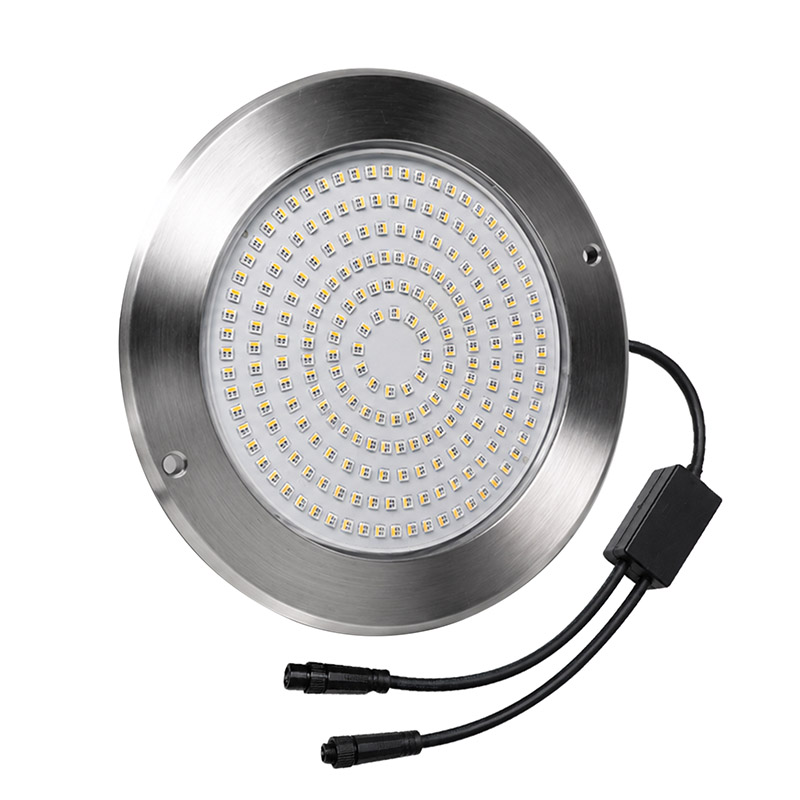

- Stainless steel housing with transparent PC cover
- IP68 waterproof construction

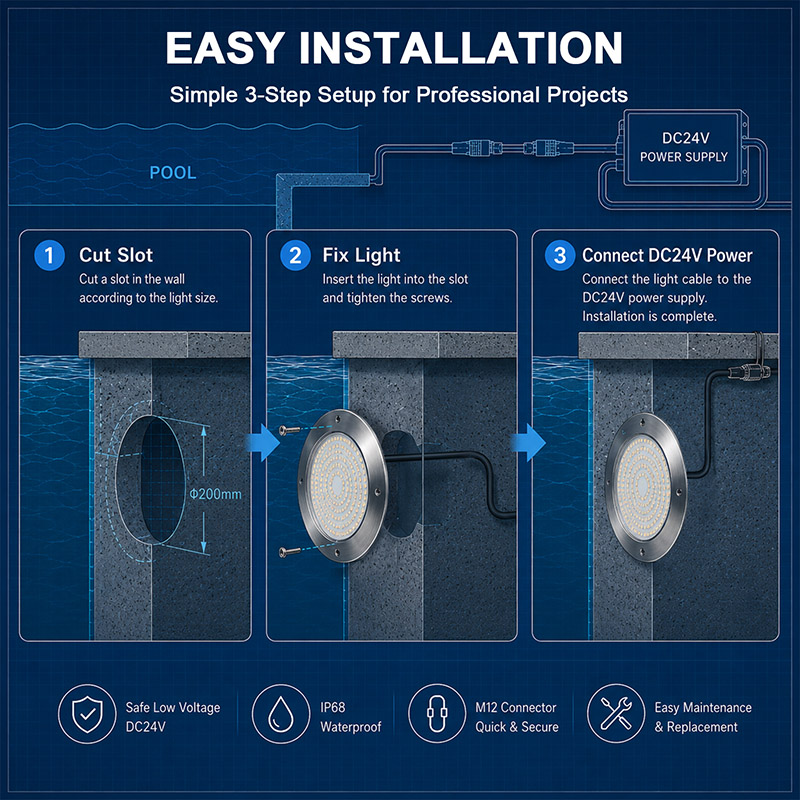

- Flush recessed installation
- M12 connector for quick and secure connection
- 50,000-hour lifespan shown in product materials

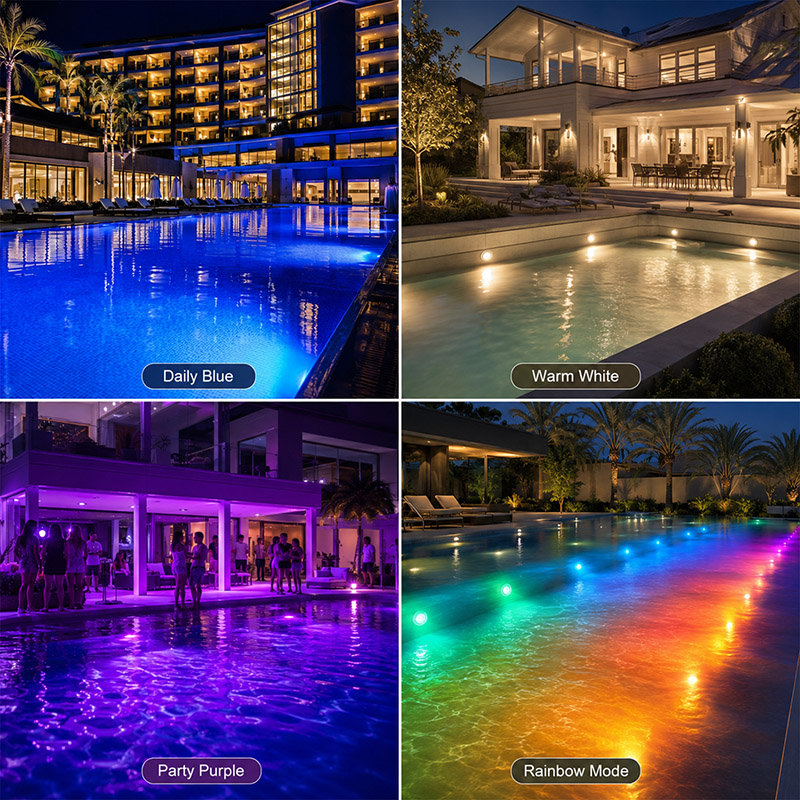

- Suitable for pools, spas, resorts, villas, and water features
Product Specifications
| Item | Specification |
|---|---|
| Part No. | UDPL-22W-02 |
| Product Type | RGBW recessed underwater pool light |
| Voltage | DC24V |
| Power | 22W |
| Beam Angle | 120° |
| LED Type | SMD5054 RGBW |
| LED Quantity | 216 pcs |
| IC Model | UCS7604 |
| IC Quantity | 12 pcs |
| Luminous Flux | 897.1 lm |
| Installation | Recessed / flush-mounted |
| Size | Dia. 230 × H31 mm |
| Housing Material | Stainless steel |
| Housing Finish | Natural stainless steel |
| Cover Material | Transparent PC |
| Color | RGBW |
| Control Method | WiFi smart app control |
| Connector | M12 waterproof connector shown |
| IP Rating | IP68 |
| Lifespan | 50,000 hours shown |
| Working Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 60°C |
