4-Wire IP68 Waterproof Extension Cable, 3m/5m/10m 18AWG Copper Wire | GOULY
| Item | Specification |
|---|---|
| Voltage | Rated Voltage: 300V; wiring label includes +48V |

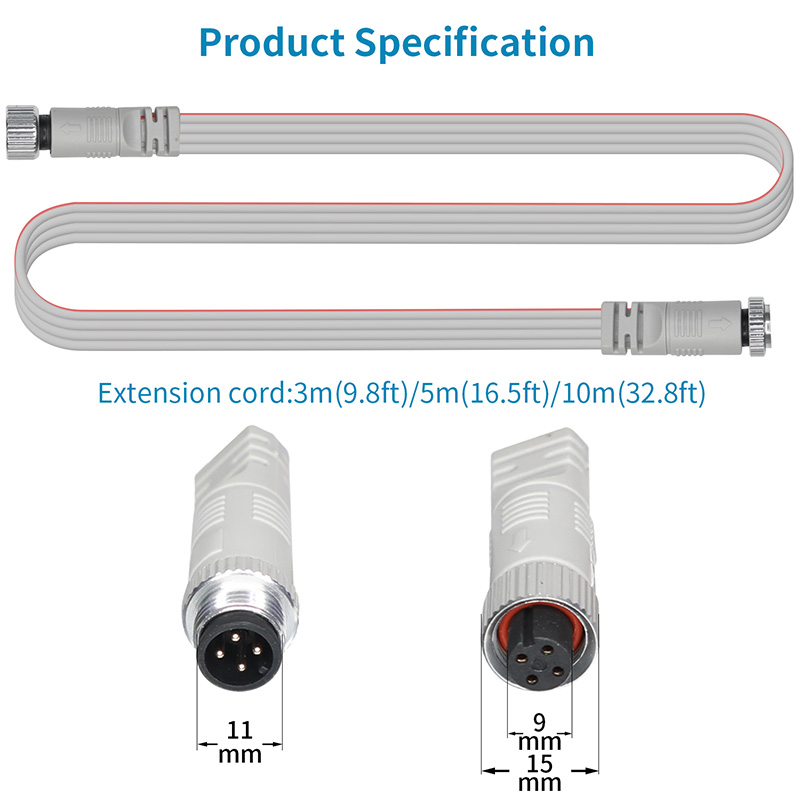

| Size | Cable length: 3m / 5m / 10m; male connector: 11 mm; female connector: 9 mm inner / 15 mm outer |
| Material / Shell Color | Cold-resistant rubber cable, gray connector housing |
| Color | Gray |
| IP Rating | IP68 |
| Control Method | Wired connection |
| Wire Type | 4-wire extension cable |
| Wire Gauge | 18AWG |
| Wire Material | Pure copper wire |

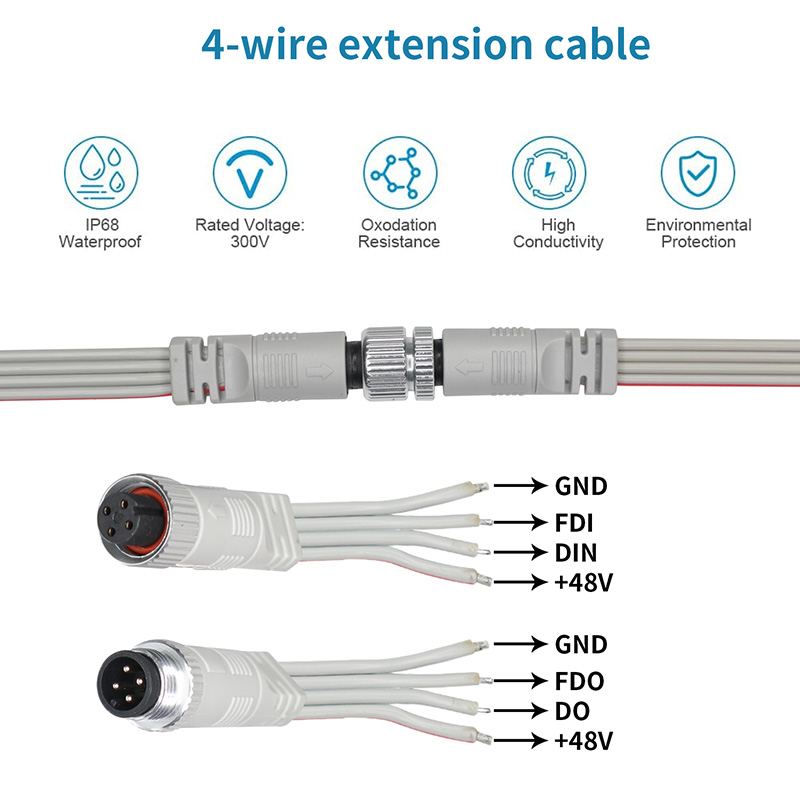

| Pin Definition | GND, FDI, DIN, +48V / GND, FDO, DO, +48V |
| Installation Method | Plug-in threaded locking connection |
The GOULY 4-wire extension cable is designed for outdoor lighting projects that need a reliable waterproof connection between lighting fixtures, waterproof boxes, and low voltage control systems. Available in 3m, 5m, and 10m lengths, it helps extend wiring distance while keeping installation clean and convenient.

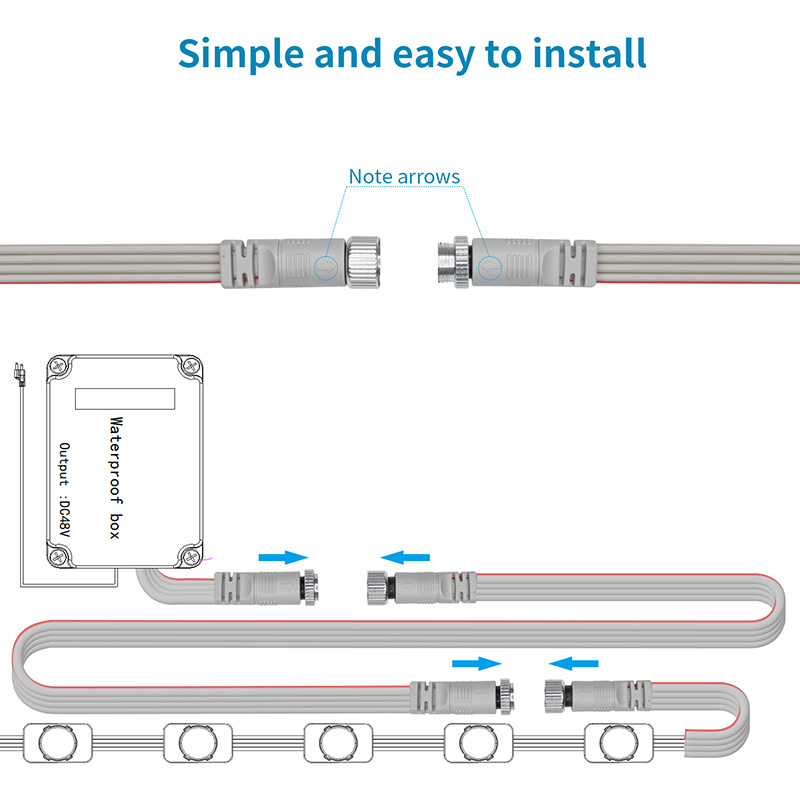

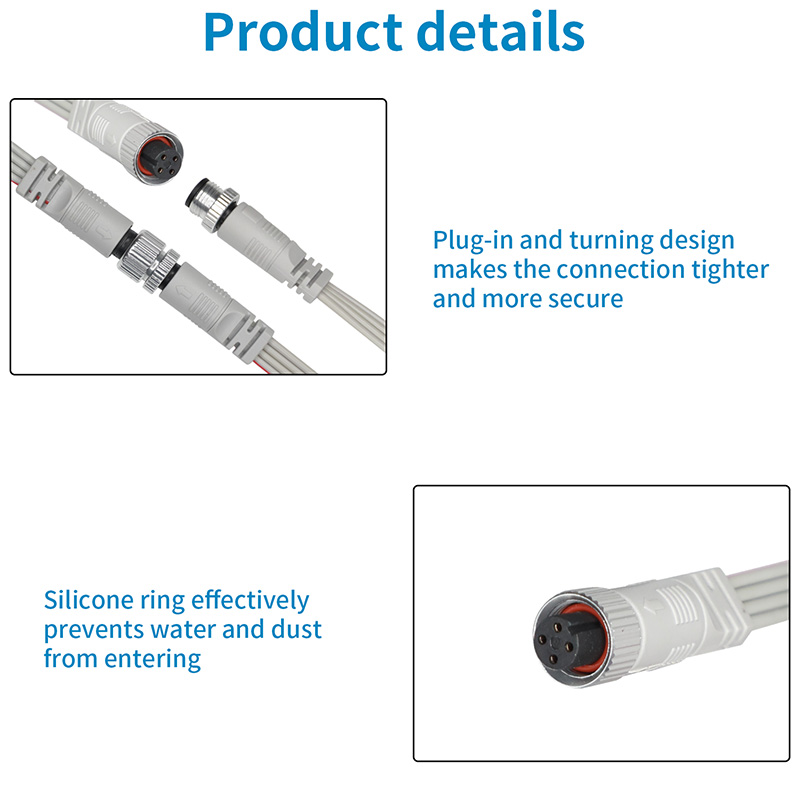

This IP68 extension cord uses 18AWG pure copper wire with cold-resistant rubber insulation for stable conductivity and outdoor durability. The plug-in threaded connector, silicone sealing ring, and arrow alignment marks help create a secure connection that is simple to install on compatible 4-pin lighting systems.
- 4-wire extension cable for outdoor lighting projects
- Available lengths: 3m, 5m, and 10m
- IP68 waterproof design for outdoor use
- Rated voltage: 300V

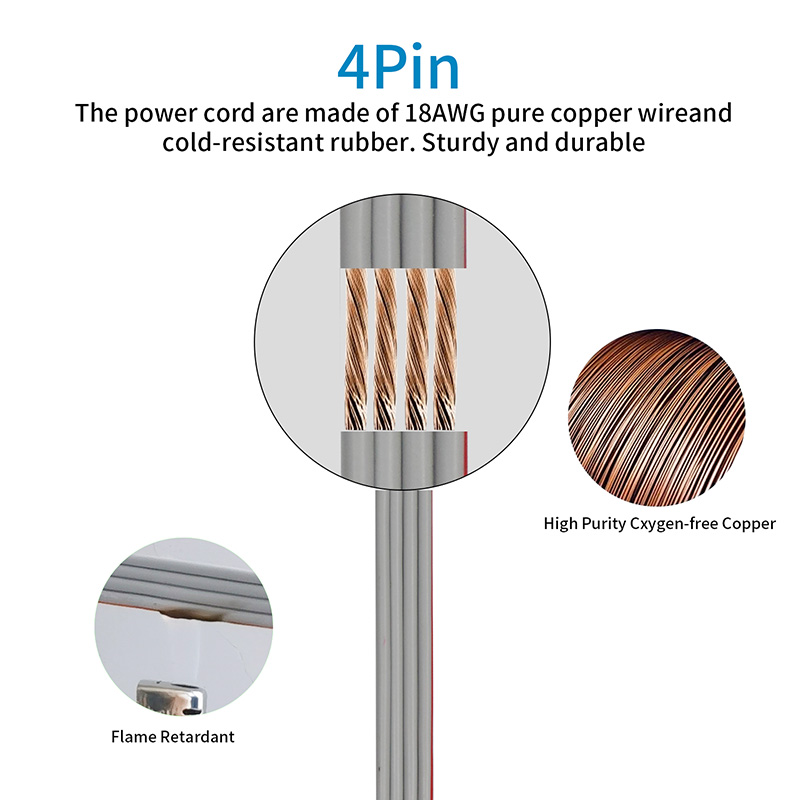

- 18AWG pure copper wire for high conductivity
- Cold-resistant rubber cable material
- Plug-in and threaded locking connector
- Silicone sealing ring helps prevent water and dust entry
- Male and female connector ends for quick connection
- Suitable for compatible DC48V lighting wiring systems
Product Specifications
| Item | Specification |
|---|---|
| Voltage | Rated Voltage: 300V; wiring label includes +48V |
| Size | Cable length: 3m / 5m / 10m; male connector: 11 mm; female connector: 9 mm inner / 15 mm outer |
| Material / Shell Color | Cold-resistant rubber cable, gray connector housing |
| Color | Gray |
| IP Rating | IP68 |
| Control Method | Wired connection |
| Wire Type | 4-wire extension cable |
| Wire Gauge | 18AWG |
| Wire Material | Pure copper wire |
| Pin Definition | GND, FDI, DIN, +48V / GND, FDO, DO, +48V |
| Installation Method | Plug-in threaded locking connection |
